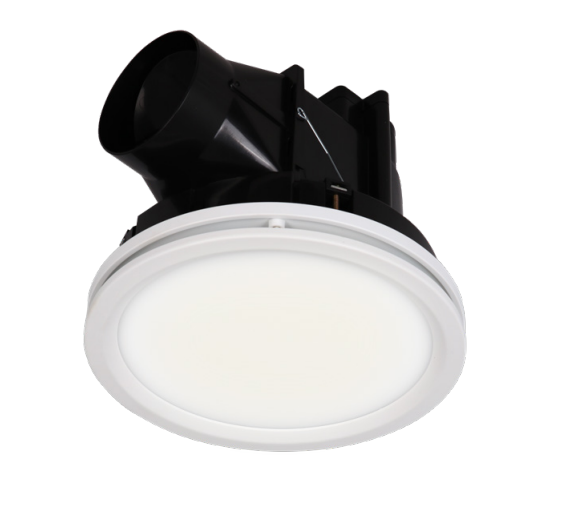

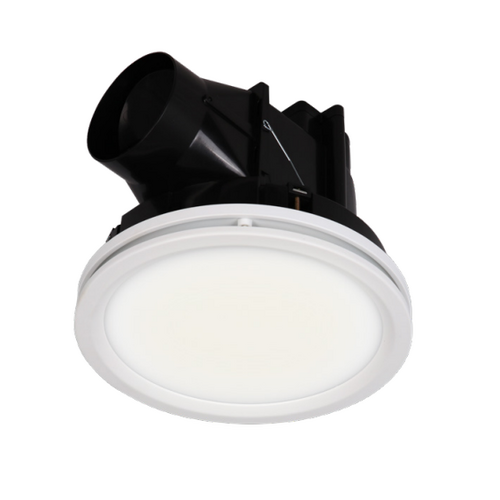

Atom Air Eclipse 240 Exhaust Fan with Light

Keep your air fresh and healthy with the Eclipse ducted exhaust fan with LED light.

Supplied with flex and plug for DIY installation, the Eclipse also has Square fascia options available.

Product Features

  • Powerful ball bearing motor for superior reliability
  • Tri-CCT LED panel provides evergy-efficient illumination
  • Enjoy quiet operation
  • Supplied with separate 0.9m flex and plug for fan and light for easy DIY installation
  • 3-year return to base warranty for peace of mind

Product Specifications

Voltage 220-240V 50Hz
IP rating IPX4
Motor Wattage 30 W
Motor Type Ball bearing
Fan Type Centrifugal
Noise Level 42 dB

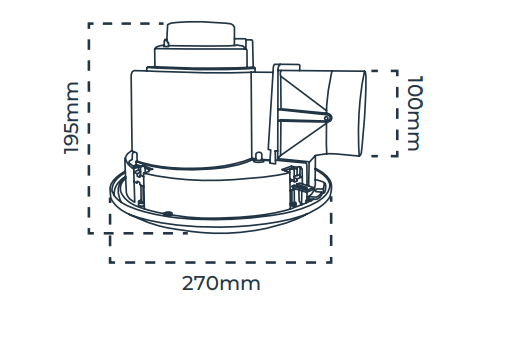

Duct Outlet 100mm
Fan Size 240mm
Air Extraction 270m³/hr
Cut Out Size 240mm
Min Ceiling Depth  220mm
Connection Separate Flex & Plug for fan & light
Light 12W LED panel
CCT 3000K, 4000K, 5000K
Lumens 900lm,1000lm, 900lm
Beam Angle 120°
CRI >80
LED Lifetime 54,000hr


Click here for Data Sheet

SKU 16759
Brand Atom Air
