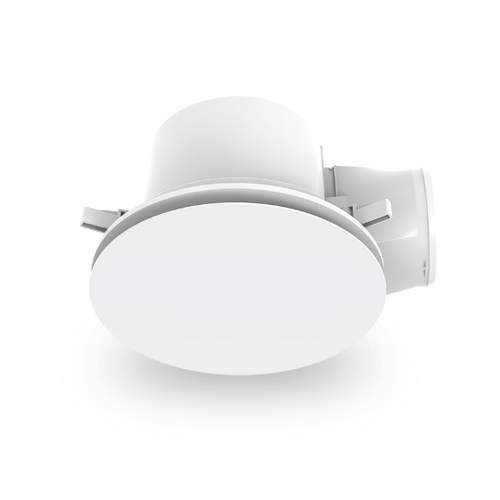

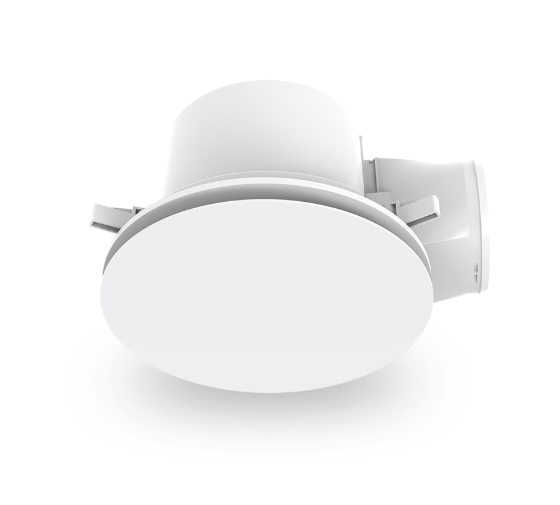

Atom Ventura 240mm 20W DC Exhaust Fan with 12W CCT LED Light White

The Atom Ventura 240mm DC Exhaust Fan with LED Light combines powerful bathroom ventilation with bright everyday lighting in one clean ceiling fitting. Its energy-efficient 20W centrifugal DC motor delivers up to 420m³/hr of airflow to help clear steam, moisture and odours from bathrooms, ensuites and laundries. The integrated 12W side-lit LED panel provides smooth, even illumination with selectable 3000K, 4000K and 5000K colour temperatures. A slim matt white removable fascia keeps the ceiling appearance neat, while the included draught stopper, duct adaptor and flex and plug help simplify installation.

• 240mm cut-out with 20W high-efficiency DC motor
• Air extraction up to 420m³/hr with 42dB noise level
• 12W integrated tri-CCT LED light with 3000K / 4000K / 5000K
• 1600 / 1700 / 1650 lumens with CRI >80
• Full-face side-lit LED panel for even light spread
• Moisture-sealed light design to help prevent steam ingress
• Centrifugal fan with ball-bearing motor
• 125mm duct outlet with draught stopper and duct adaptor included
• Matt white removable fascia for easier cleaning
• IPX4 rated for bathroom applications
• 240mm cut-out, 275 x 275mm overall size, 198mm height
• 250mm minimum ceiling depth
• 230V AC, 50Hz
• Optional run-on timer accessory available, order code 14851
• Suitable for bathrooms, ensuites, laundries and other moisture-prone areas
• 3 year return-to-base domestic warranty
• Atom model VENTURA/240/LT/WH/RD
• Order code 13525

Click here for Data Sheet
