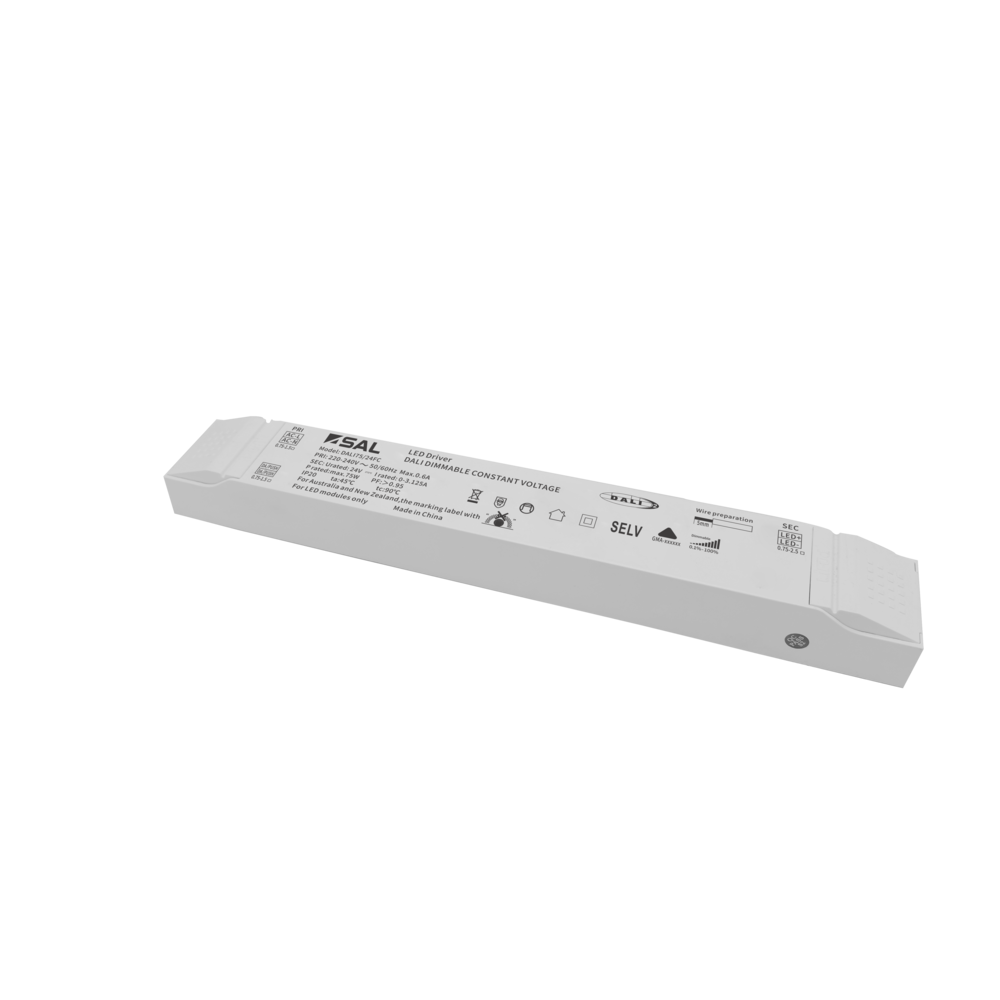

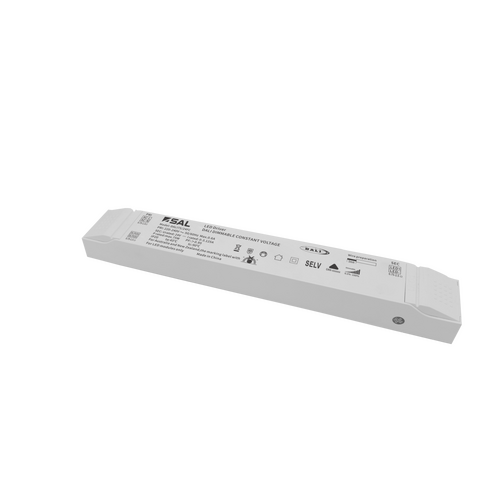

SAL DALI150/24V 150W 24V DALI Dimmable LED Driver

The SAL DALI150/24V LED Driver is an Australian approved constant voltage DALI power supply designed for larger 24V LED lighting installations. Its 150W capacity makes it well suited to longer LED strip runs, architectural lighting, display lighting, commercial joinery, retail fitouts and residential feature lighting where reliable dimming and DALI system control are required. With DALI 2.0 certification, Push DIM control, flickerCONTROLLED technology and built-in overload and short circuit protection, this driver is a practical choice for professional lighting projects that need smooth, stable low voltage LED operation.

• Constant voltage LED driver
• DALI dimmable power supply
• 24V DC output
• 150W power rating
• 240V input
• Minimum load 5W
• DALI 2.0 certified by DiiA
• DALI and Push DIM control
• Greater than 12-bit dimming resolution
• flickerCONTROLLED technology
• Suitable for LED strip applications
• Overload protection
• Short circuit protection
• SELV compliant
• EMC compliant
• Fixed terminal termination
• Electrical Class II
• Do Not Cover rating
• Power factor 0.95
• Dimmable
• DALI2 dimmer type
• Suitable for residential, commercial and project lighting applications
• Ideal for longer LED strip runs, architectural lighting, display lighting, joinery lighting and retail fitouts
• Installation by a qualified electrical installer required
• 361mm length
• 43mm width
• 31mm height
• Model number DALI150/24V

Click here for Data Sheet
