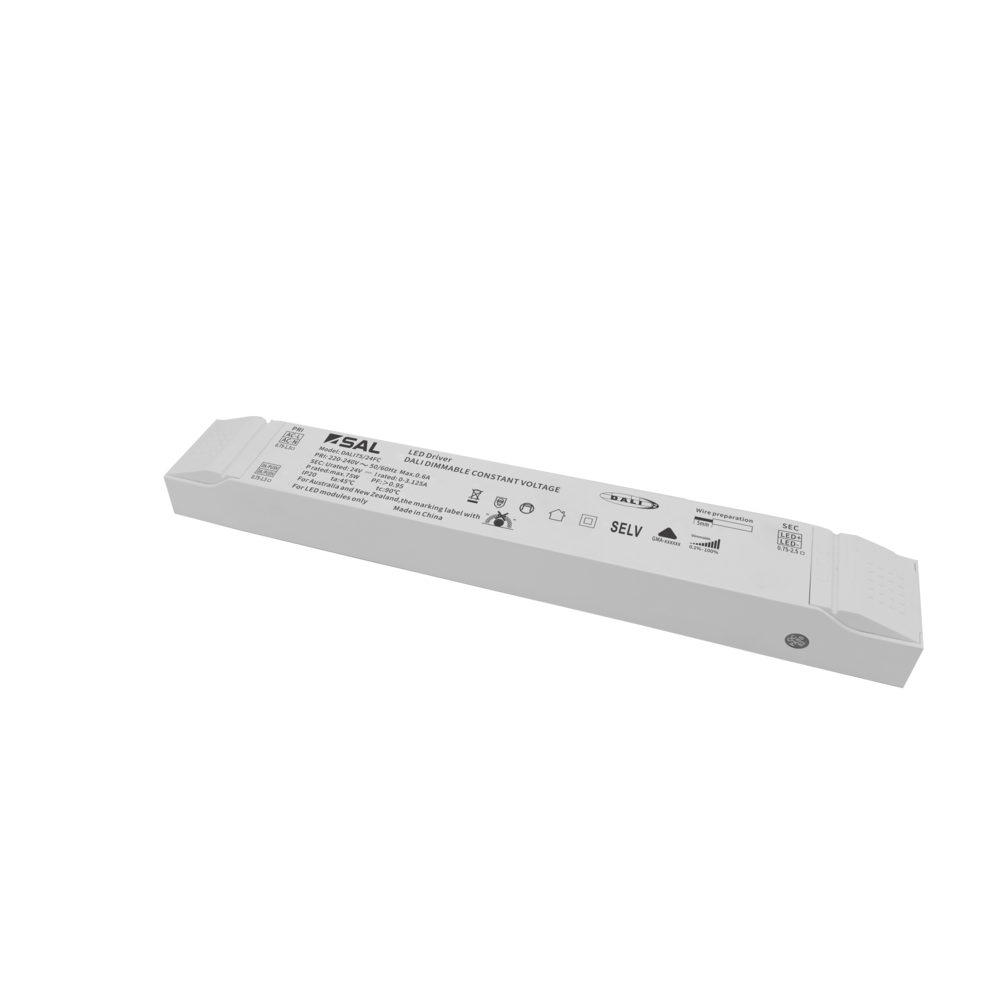

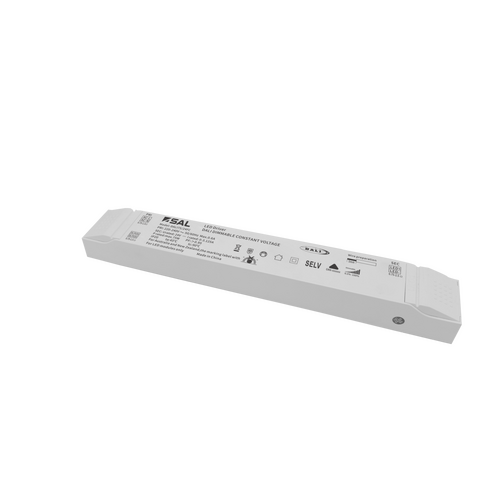

SAL DALI75/24V 75W 24V DALI Dimmable LED Driver

The SAL DALI75/24V LED Driver is an Australian approved constant voltage power supply designed for DALI controlled LED lighting systems. Its 24V DC output and 75W capacity make it a practical choice for compatible LED strip lighting, linear lighting, cabinetry lighting, display lighting and architectural lighting applications where smooth digital dimming is required. With DALI 2.0 certification, Push DIM control and flickerCONTROLLED technology, this driver is ideal for residential, commercial and project lighting installations that need reliable dimming performance and integration with DALI lighting control systems.

• Constant voltage LED driver
• DALI dimmable power supply
• 24V DC output
• 75W power rating
• 240V input
• Minimum load 5W
• DALI 2.0 certified by DiiA
• DALI and Push DIM control
• Greater than 12-bit dimming resolution
• flickerCONTROLLED technology
• Suitable for LED strip applications
• Overload protection
• Short circuit protection
• SELV compliant
• EMC compliant
• Fixed terminal termination
• Electrical Class II
• Do Not Cover rating
• Power factor 0.95
• Dimmable
• DALI2 dimmer type
• Suitable for residential, commercial and project lighting applications
• Ideal for LED strip, linear lighting, cabinetry lighting, display lighting and architectural lighting
• Installation by a qualified electrical installer required
• 300mm length
• 43mm width
• 31mm height
• Model number DALI75/24V

Click here for Data Sheet
