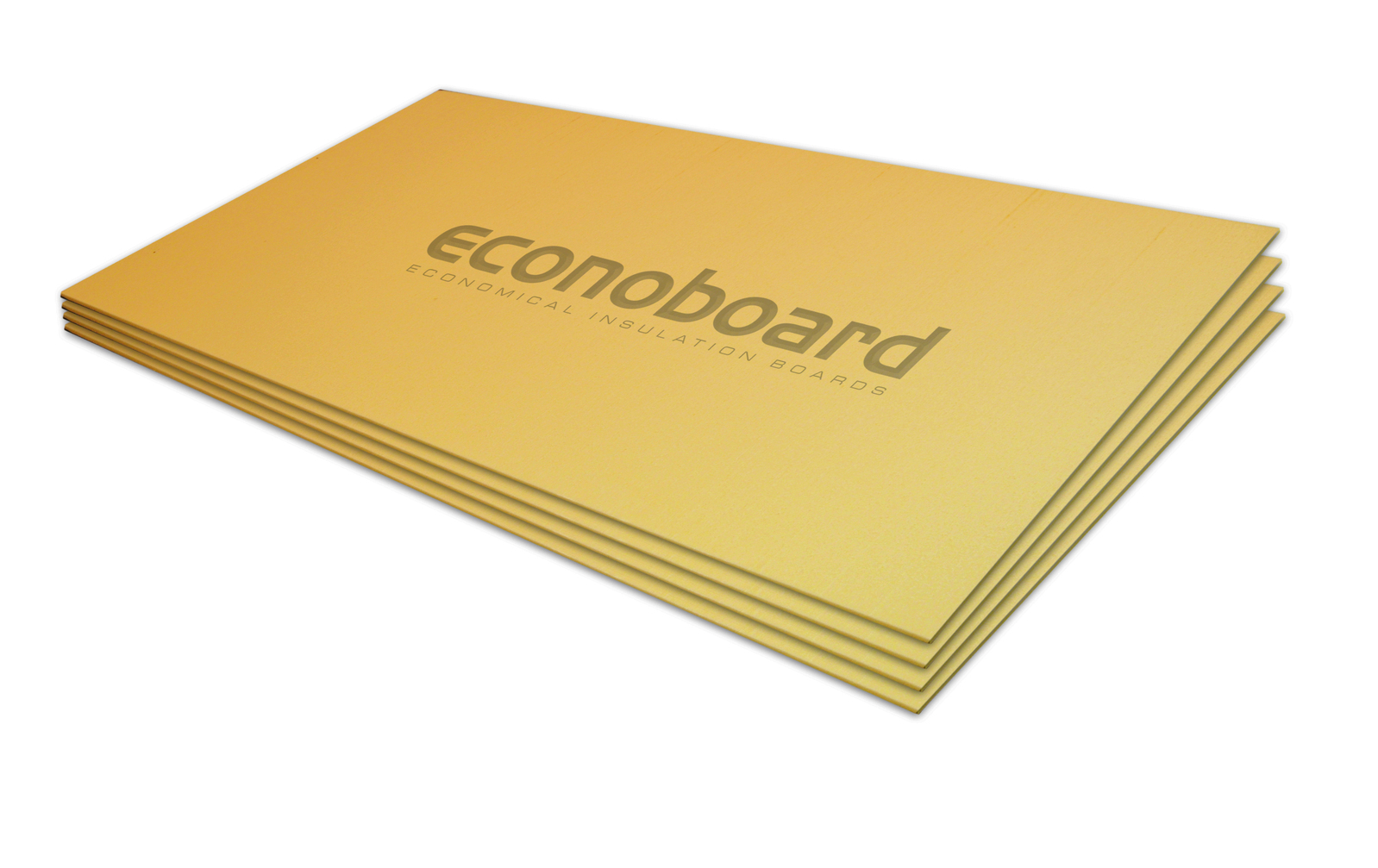

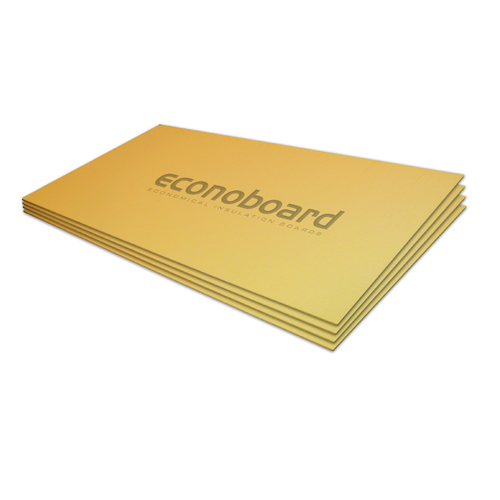

Thermogroup Econoboard 10mm Uncoated Insulation Board for Underfloor Heating

The Thermogroup Econoboard 10mm Uncoated Insulation Board is designed to improve the efficiency and heat-up performance of electric underfloor heating systems installed over concrete subfloors. Its thicker 10mm profile provides a higher R value than the 6mm option, helping reduce downward heat loss and direct more warmth into the tiled floor above. Moisture-resistant and rot-proof, it is suitable for bathrooms, ensuites, laundries, kitchens and living areas where underfloor heating performance is a priority. Econoboard 10mm Uncoated is ideal for renovations, new builds and energy-conscious interiors where improved insulation, faster heat-up times and reduced running costs are important.

• 10mm uncoated insulation board for electric underfloor heating
• Designed for use under tiled floors on concrete subfloors
• Helps reduce downward heat loss into the substrate
• Can improve underfloor heating efficiency by up to 50%
• Helps achieve faster floor heat-up times
• Thicker 10mm profile provides improved insulation performance
• 100% moisture resistant and rot proof
• Suitable for floors and walls
• Easy to cut with regular hand tools
• Ideal for bathrooms, ensuites, laundries, kitchens and living areas
• Suitable for renovations, new builds and energy-conscious heating installations
• Recommended below underfloor heating where floor height allows
• For tanked wet room applications, coated Econoboard is recommended
• Extruded polystyrene board construction
• Thermal conductivity of 0.033W/mK
• Compressive strength of 300kPa
• Water absorption of 0.6%
• Foam core density of 36kg/m³
• Temperature range from -50°C to +75°C
• Board size 1200mm x 600mm
• 10mm board thickness
• R value of 0.30m²K/W
• Covers 7.2m² per pack
• Supplied as a pack of 10 boards
• Stock number 6014
