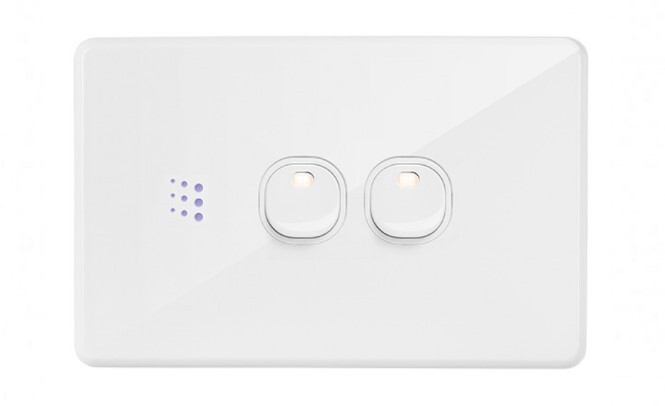

Trader Powermesh PMMPS2H Smart Multi Purpose Switch Horizontal White

The Trader Powermesh PMMPS2H smart multi purpose switch in white is a clean horizontal smart switch designed for modern homes, apartments, offices and connected living spaces. Built in classic Puma architecture, it gives you simple soft-touch control at the wall while adding smart switching through the Zimi app and Powermesh ecosystem.

Ideal for lighting, motor control and general smart switching applications, the PMMPS2H can be installed in 2 wire or 3 wire mode with auto-sensing to suit the available wiring. With inbuilt scheduling, multi-way switching through Behaviour Link, power outage recovery and optional control from anywhere using Zimi Cloud Connect, it is a practical choice for smart home upgrades, renovations and new electrical fit-offs.

• Horizontal smart switch in classic Puma architecture
• Soft touch wall control for a clean, modern user experience
• Max 5AX total load rating
• 220 to 240V AC 50Hz
• 2 wire or 3 wire auto-sensing installation
• Neutral not required in 2 wire mode, neutral can be connected where available
• 2 wire mode rated 5A max for channel one with suitable load required
• Indicator displays the on and off state
• Software control using the Zimi app
• Inbuilt scheduling for automated everyday control
• Multi-way switching using Behaviour Link through the Zimi app
• Power outage recovery for reliable operation
• Control from anywhere via internet when used with Zimi Cloud Connect ZCCD
• Fits standard Australian wall boxes and mounting accessories with 84mm mounting centres
• Switch terminals have 4mm bore to suit 1.5mm² cable
• UV stabilised polycarbonate covers, plates and dollies to help avoid discolouring
• Approved to AS/NZ60669.2.1 and AS/NZS CISPR15
• M40 motor rating max
• 2 year warranty

Click here for Data Sheet
