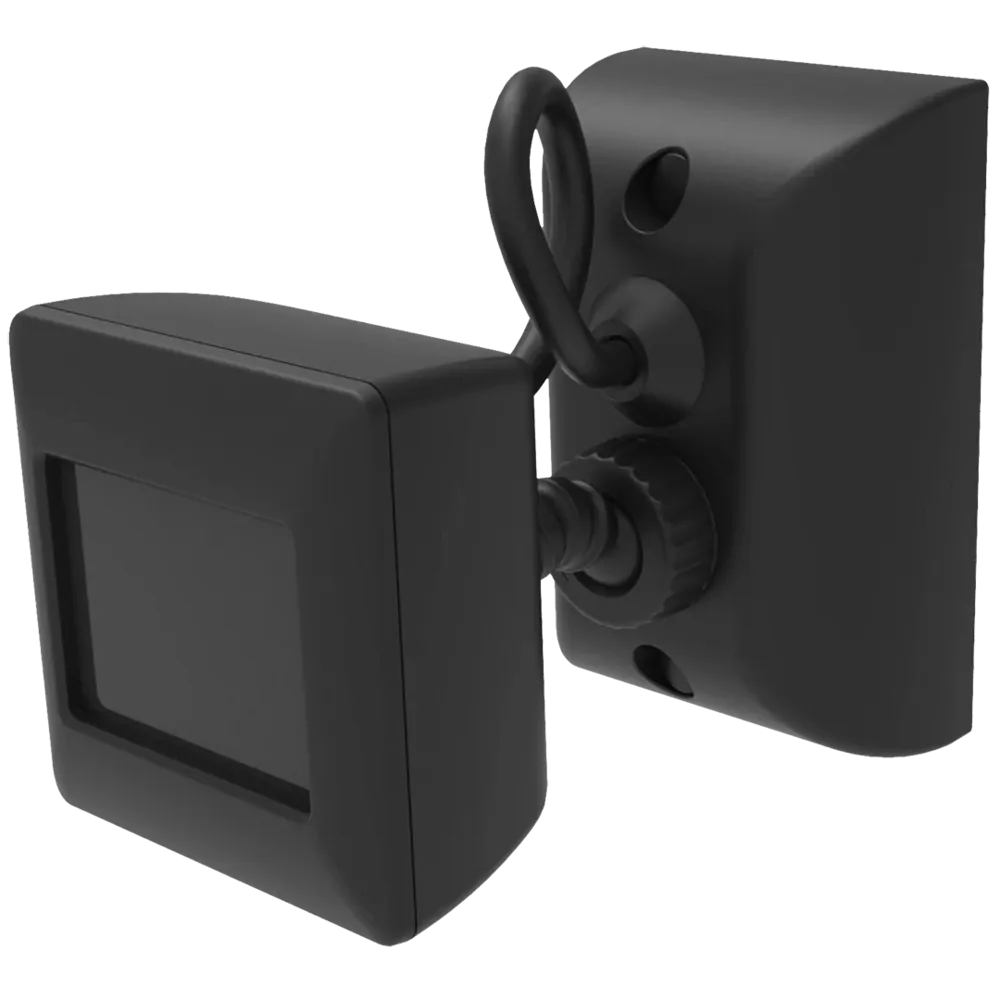

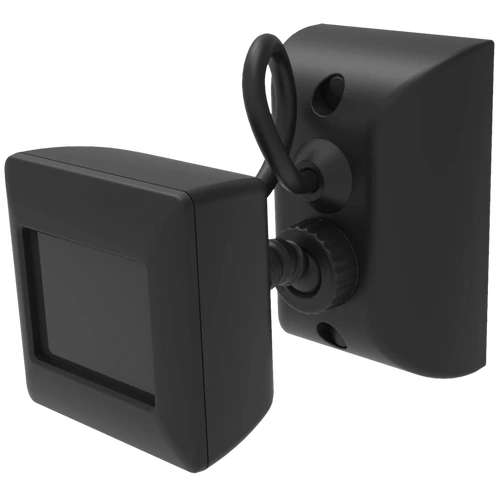

SAL PIXIE SMS862WF/BK/BTAM Black Smart Outdoor PIR Motion Sensor

The SAL PIXIE SMS862WF/BK/BTAM is a smart outdoor PIR motion sensor designed to automate compatible lighting through the SAL PIXIE smart home system. Its black surface-mounted body includes an integrated PE daylight cell, allowing connected lighting to operate in response to movement, ambient light levels or a selected override mode. Sensitivity, hold time and brightness threshold can be adjusted through the physical controls or PIXIE PLUS app, providing flexible operation for entrances, pathways, driveways, garages, patios, side access areas, warehouses and commercial properties. The black finish coordinates with dark exterior lighting and complements modern, contemporary, minimalist, industrial and architectural spaces.

• SAL PIXIE master device
• Smart outdoor PIR motion sensor
• Black body finish
• Surface-mounted design
• Integrated PE daylight cell
• Suitable for interior and exterior use
• IP66 weather-resistant rating
• 110 degree detection angle
• Detection range up to 10 metres
• Recommended mounting height from 1.8 to 2.5 metres
• Adjustable motion sensitivity
• Adjustable hold time
• Adjustable ambient light threshold
• Settings adjustable using physical control dials
• Settings adjustable through the PIXIE PLUS app
• Four selectable operating modes
• Motion sensor mode
• Override on mode
• Override off mode
• PE cell mode
• Operating modes selectable through the app or a compatible PIXIE secondary device
• Maximum 500W LED load
• Maximum 2000W halogen load
• Three-wire design
• 240V input voltage
• Non-dimmable
• Suitable for entrances, pathways, driveways, garages, patios and side access areas
• Ideal for warehouses, loading areas and commercial exteriors
• Complements modern, contemporary, minimalist, industrial and architectural spaces
• Product code SMS862WF/BK/BTAM
• Must be installed by a qualified electrical installer

Click here for Data Sheet
