Vencha Extract Prime Mini EC 4 in 1 Bathroom Heater, Fan, LED Light and Exhaust White

The Vencha Extract Prime Mini EC 4 in 1 Bathroom Heater, Fan, LED Light and Exhaust in white is a compact all-in-one bathroom solution designed for smaller bathrooms and ensuites where heating, cooling, ventilation and lighting are all required from one ceiling unit. It combines a 2000W PTC heater for fast warmth, a 20W cooling fan, a 350m³/h exhaust fan to help clear steam and moisture, and a 12W integrated LED light with selectable 3CCT colour temperatures. The efficient EC motor is designed for quiet, low-maintenance operation, while built-in safety features include thermal protection, a 120-second exhaust run-on timer, an automatic heat cool-down cycle and a 45-minute heat shut-off. Its compact 300mm square white fascia and clean low-profile appearance make it particularly well suited to modern, contemporary, minimalist and practical bathroom interiors.

• 4 in 1 bathroom heater, cooling fan, LED light and exhaust fan
• 2000W PTC heating
• 20W EC exhaust fan motor
• 350m³/h airflow
• 20W cooling fan
• 12W integrated LED light
• 3CCT selectable colour temperature
• 3000K warm white, 4000K neutral white or 5000K cool white
• 900 / 1000 / 950 lumens
• Non-dimmable LED light
• White finish
• Polypropylene housing
• PC fascia
• IPX4 rated

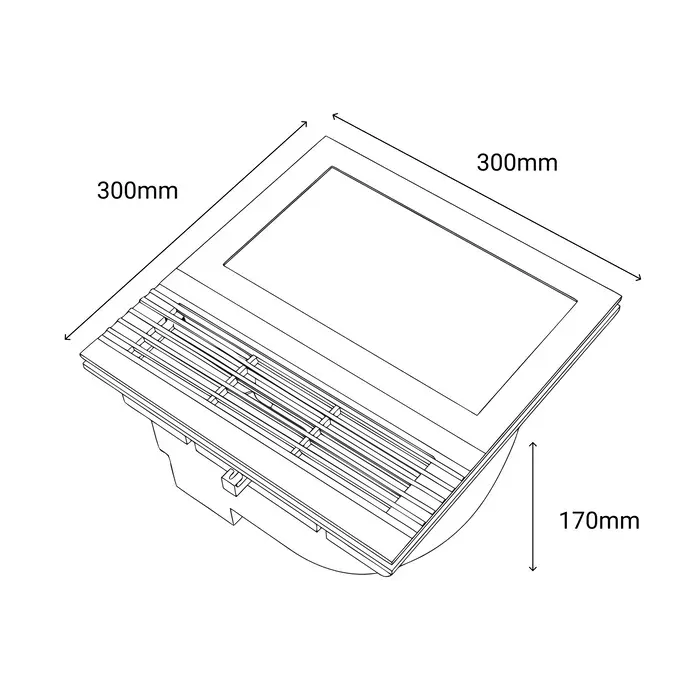

• 300mm x 300mm face size
• 275mm x 275mm ceiling cut-out
• 170mm unit depth
• 195mm minimum installation depth
• 100mm duct size
• Built-in thermal protection system
• 120-second exhaust run-on timer
• 20-second automatic heat cool-down cycle
• 45-minute safety heat shut-off
• Exhaust function overrides heating when operating
• Backflow prevention shutter
• Includes 4-gang wall switch
• Includes 3m aluminium duct
• Includes external grille
• Includes cut-out template
• Suitable for smaller bathrooms and ensuites
• Complements modern, contemporary, minimalist and clean bathroom interiors
• 5 year warranty with 2 year in-home warranty

Click here for Data Sheet
