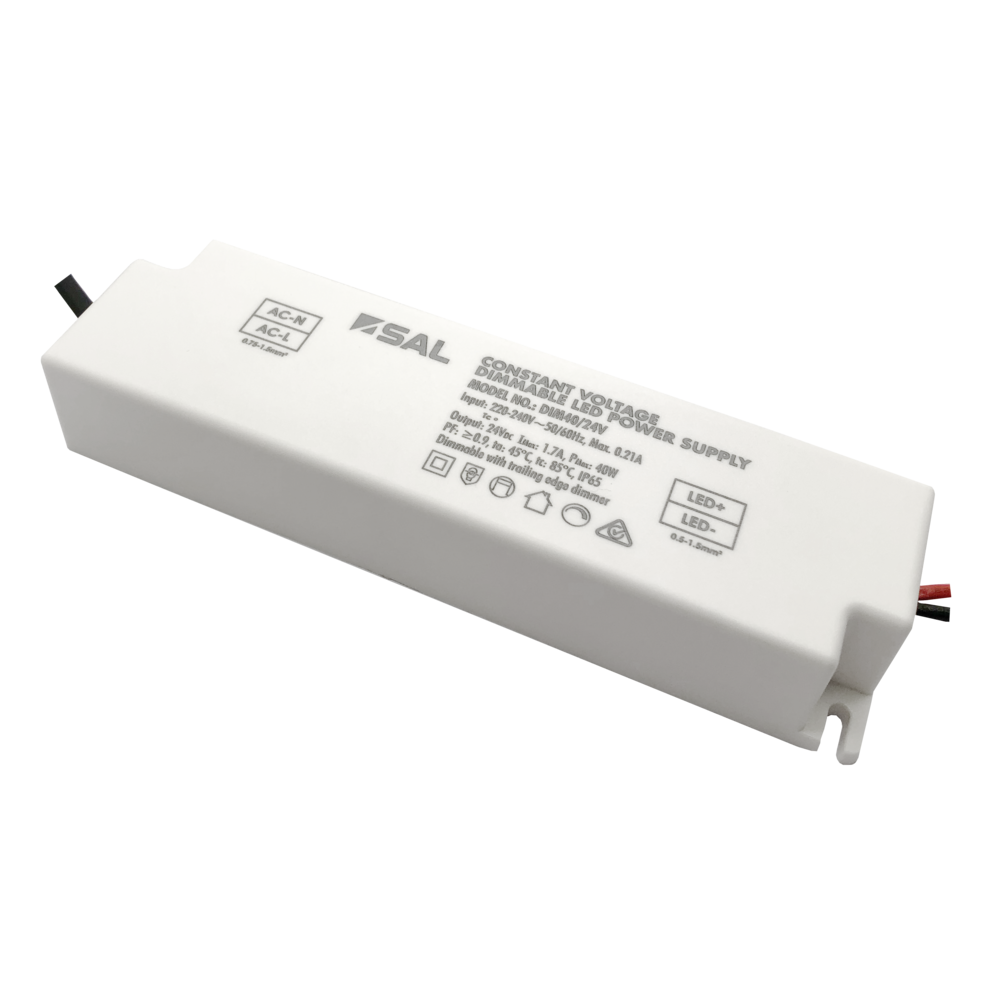

SAL DIM40 24V 40W IP65 Dimmable LED Driver

The SAL DIM40 24V LED Driver is an Australian-approved constant voltage power supply designed for compatible 24V LED strip lighting and low voltage LED installations. Its compact IP65-rated housing offers added protection against dust and moisture, while trailing edge dimming allows the connected lighting to be adjusted with a compatible dimmer. Producing up to 40W of power, it is suitable for kitchens, bathrooms, laundries, wardrobes, display cabinets, retail displays, reception areas and covered outdoor spaces. The practical, discreet design works well in modern, contemporary, minimalist and architectural interiors where dimmable LED strip lighting is used for task, accent or ambient illumination.

• 24V constant voltage LED driver
• 40W maximum output
• 5W minimum load
• 240V input voltage
• 50Hz operating frequency
• IP65 rated construction
• Dimmable with compatible trailing edge dimmer
• Recommended SAL dimmers include SDD350UM, SDD400U and SDA450U/LED
• Suitable for compatible 24V LED strip lighting
• Safe no load operation
• Power factor 0.9
• Overload protection
• Short circuit protection
• SELV compliant
• EMC compliant
• Electrical Class II construction
• 1.2 metre flex and 2 pin plug fitted
• Secondary output fly leads
• Do not cover
• Suitable for kitchens, bathrooms, laundries, wardrobes, display cabinets, retail spaces and covered outdoor areas
• Complements modern, contemporary, minimalist and architectural interiors
• 155mm long
• 43mm wide
• 26mm high
• Product code DIM40/24V
• Installation by a qualified electrical installer required

Click here for Data Sheet
